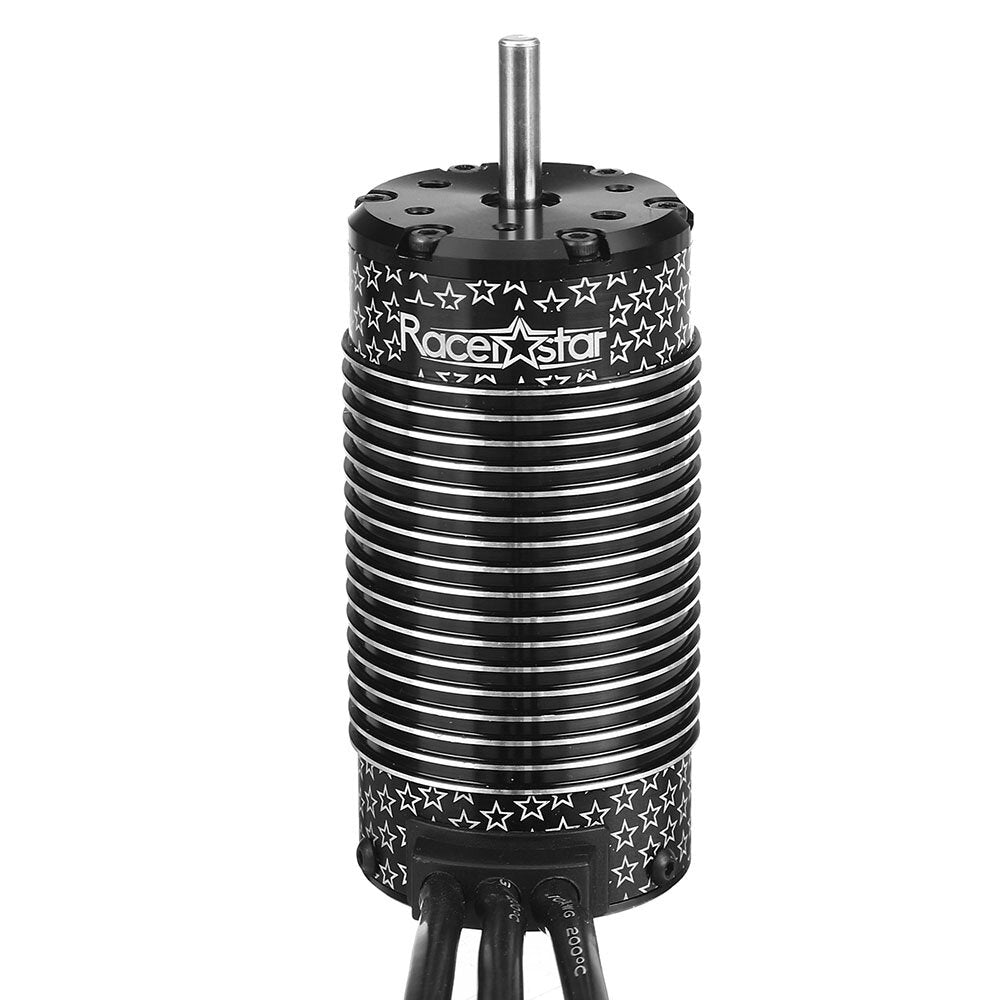

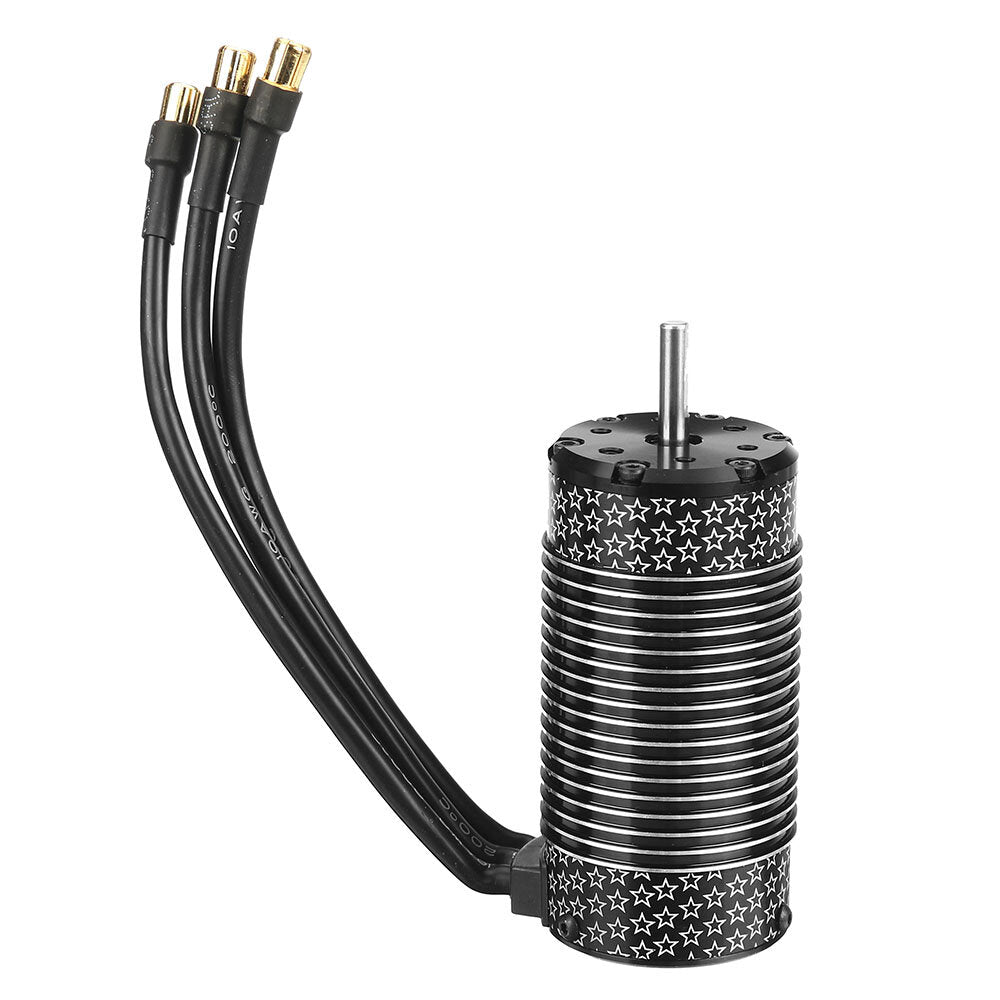

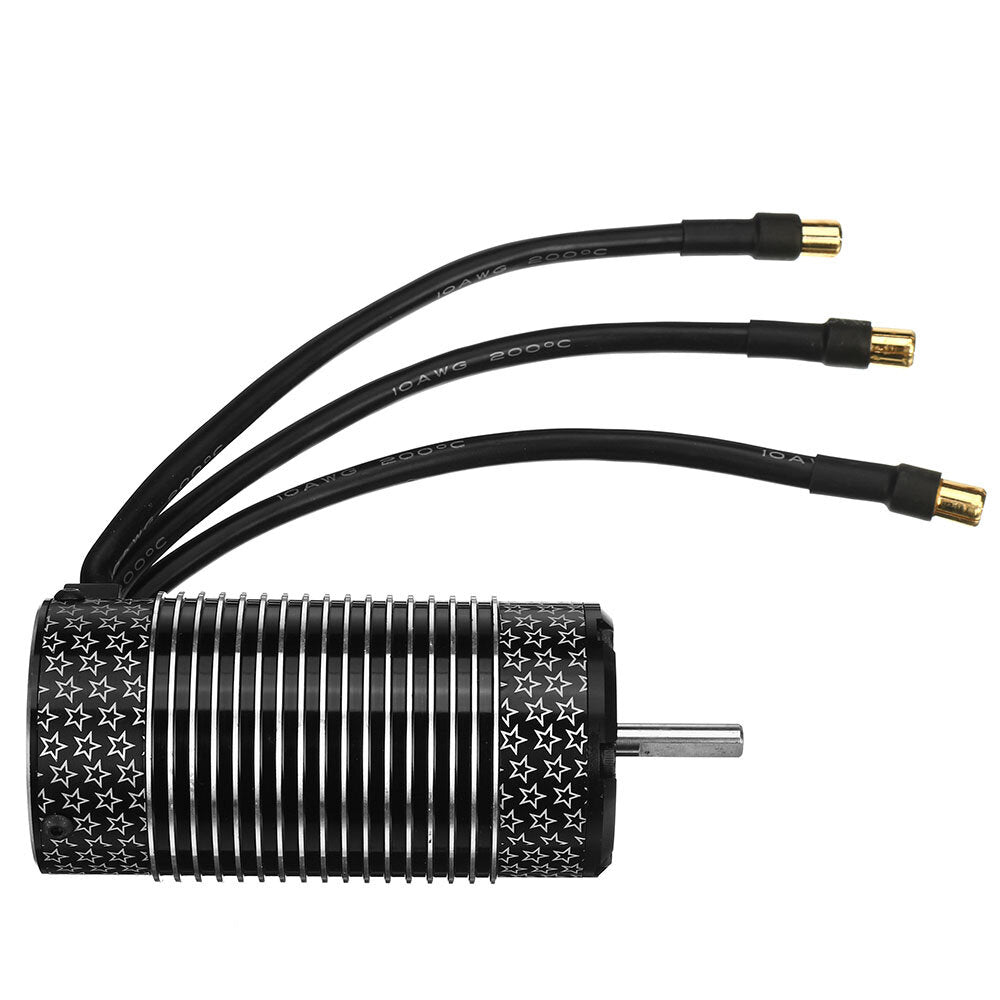

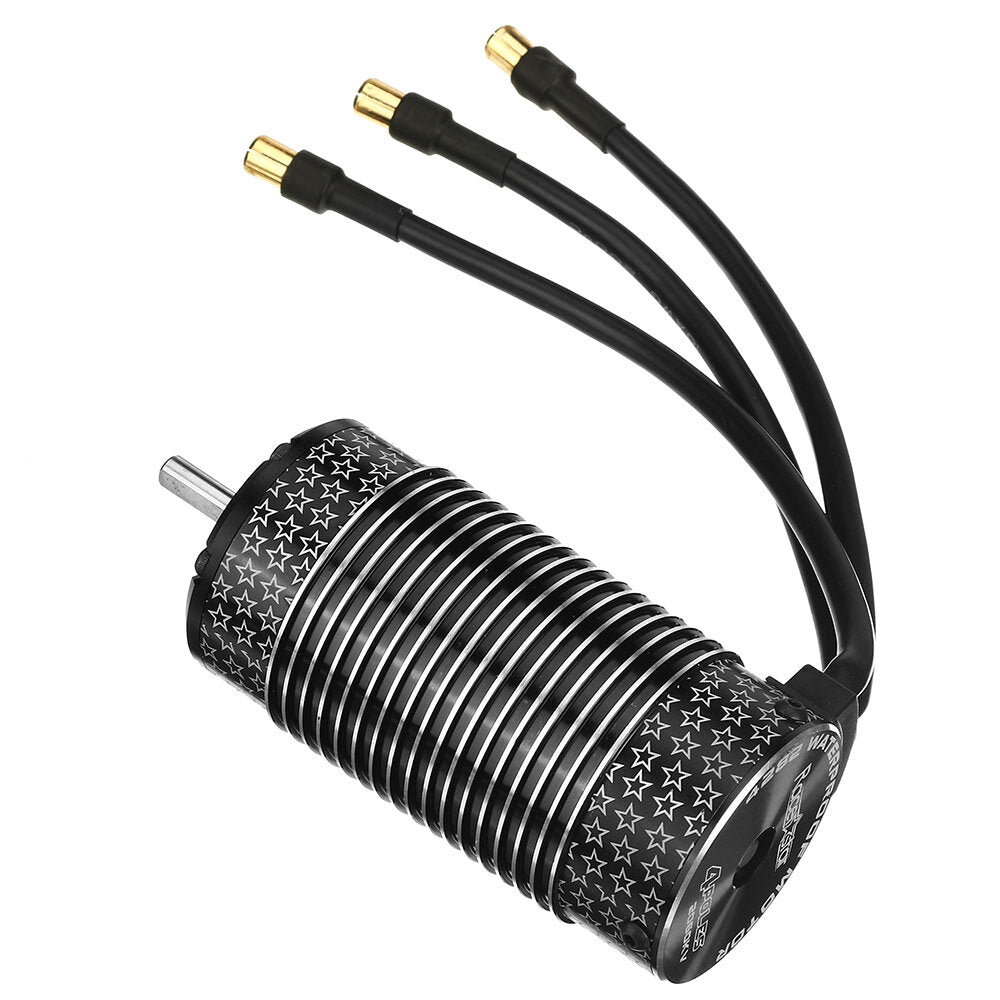

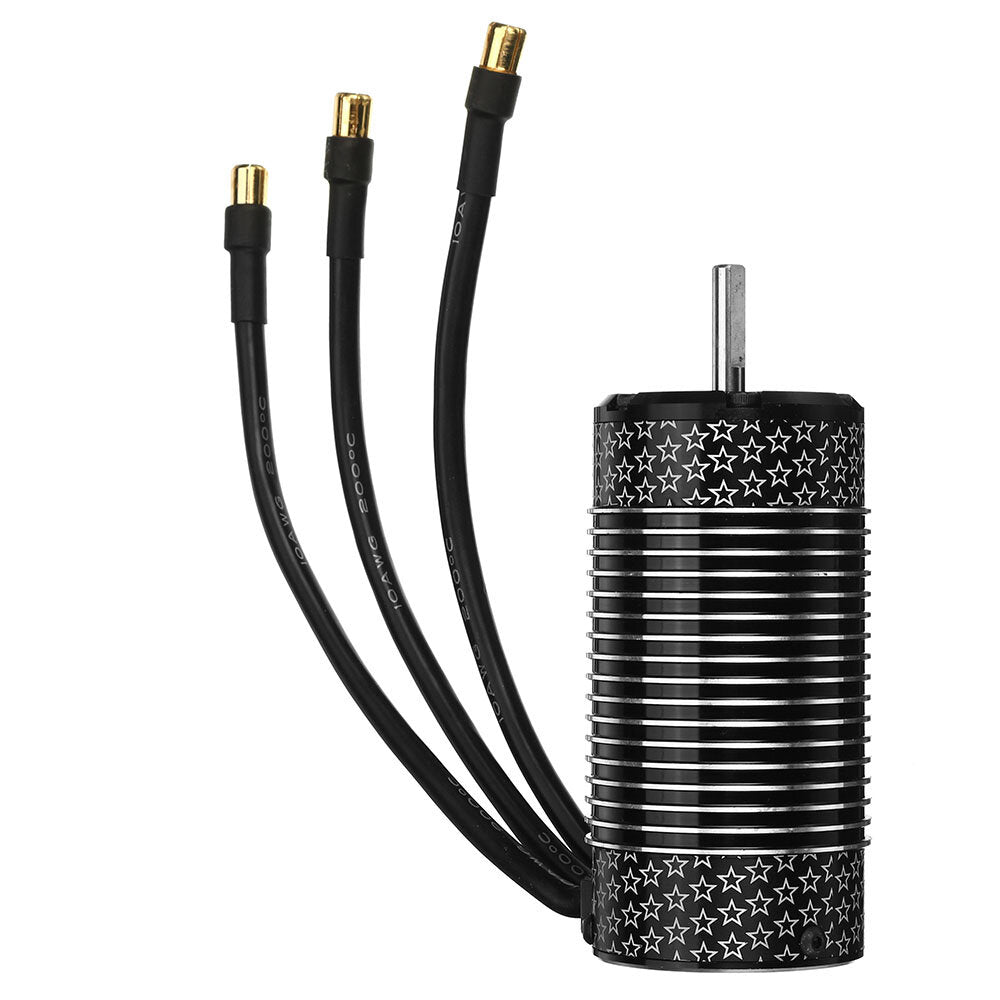

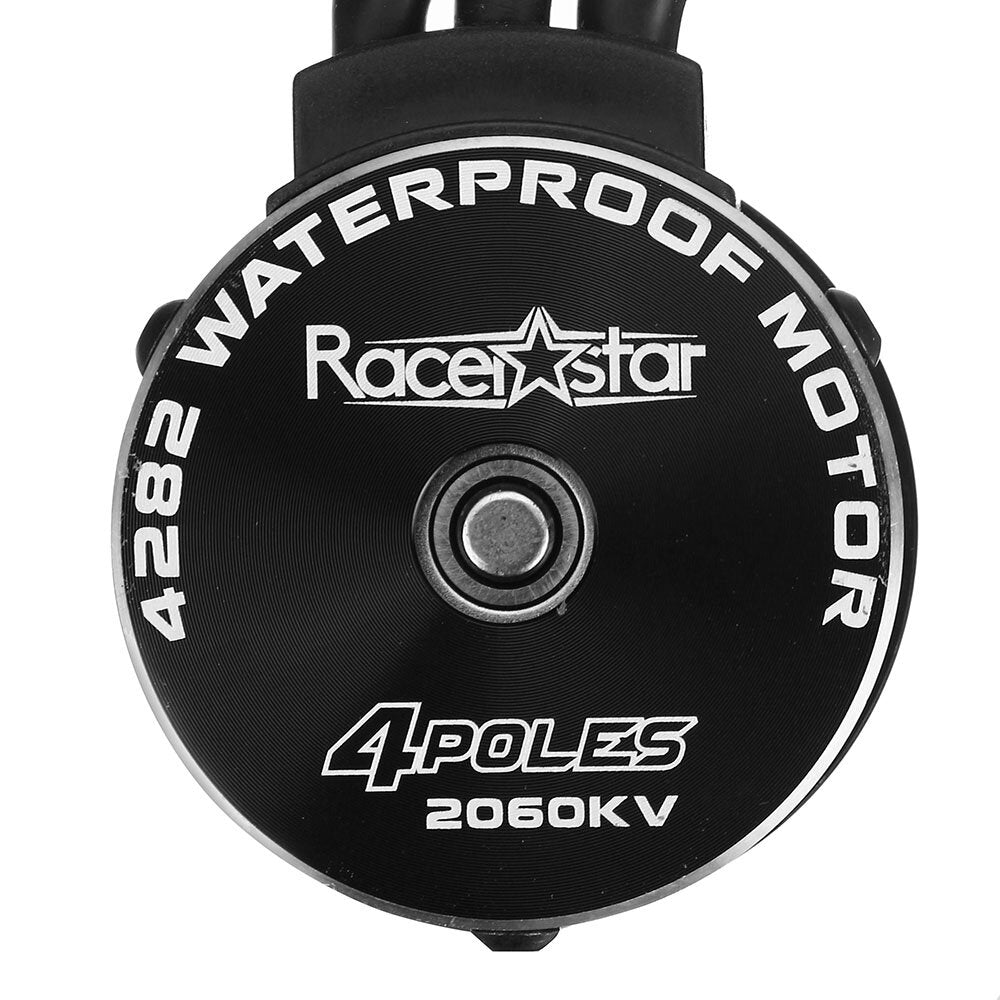

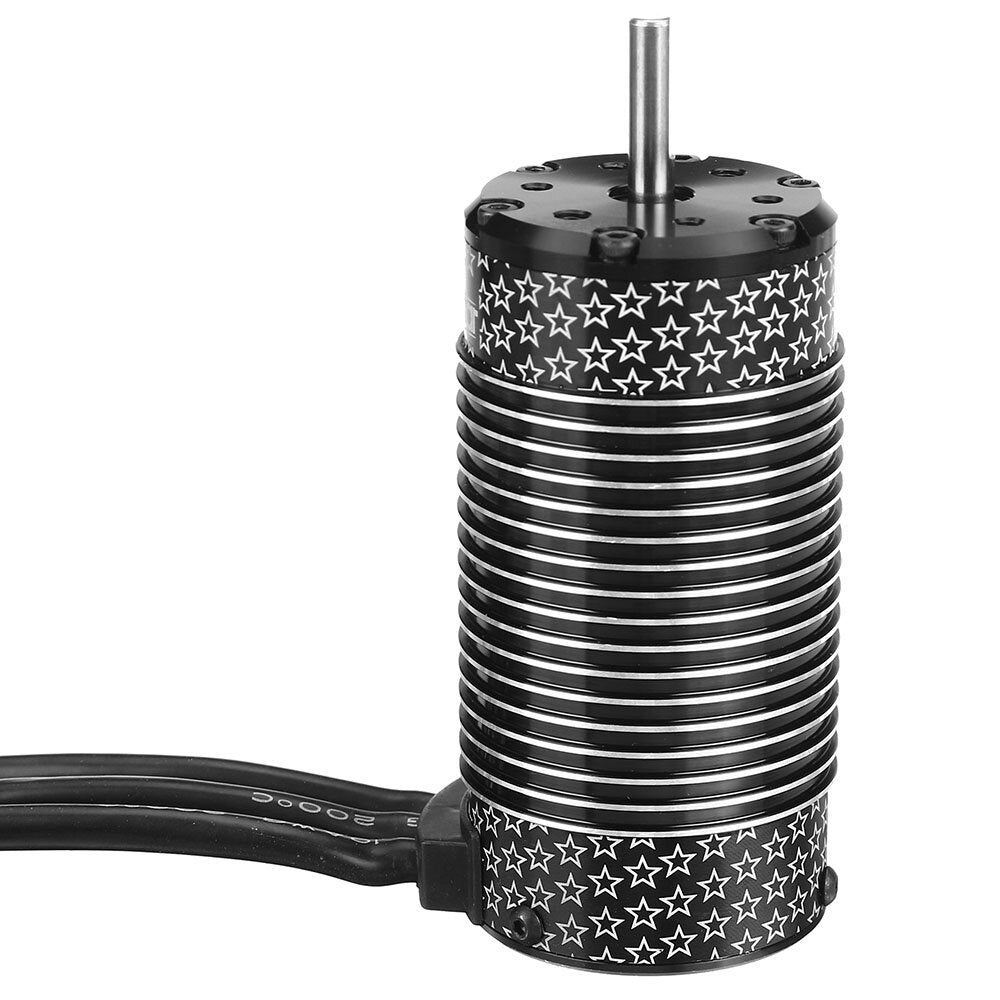

Racerstar 4282 Brushless Motor 2060KV/1720KV 4 Poles for UDR X-maxx DBX-07 EX07 1/7 1/8 RC Car Vehicles Parts
Racerstar 4282 Brushless Motor 2060KV/1720KV 4 Poles for UDR X-maxx DBX-07 EX07 1/7 1/8 RC Car Vehicles Parts
Description:
Brand:Racerstar
Item Number:4282 Motor
Material:Metal
Color:As shown
Compatible Models:1/7 and 1/8 rc cars vehicles models,such as UDR X-maxx,ex07,dbx 07
Specification:
KV:2060KV/1720KV
Watts:3400
Max Voltage:<21V(2060KV), <24V(1720KV)
Max Amps:160A(2060KV), 140A(1720KV)
Rotor Poles:4
IO:4.5A(2060KV), 2.2A(1720KV)
Resistance:0.0053(2060KV), 0.0082(1720KV)
Max RPM:50000
Length:82mm
Diameters:42mm(with fans)
Weight:About 470g
Shaft:5mm
Length of Extend Shaft:18mm

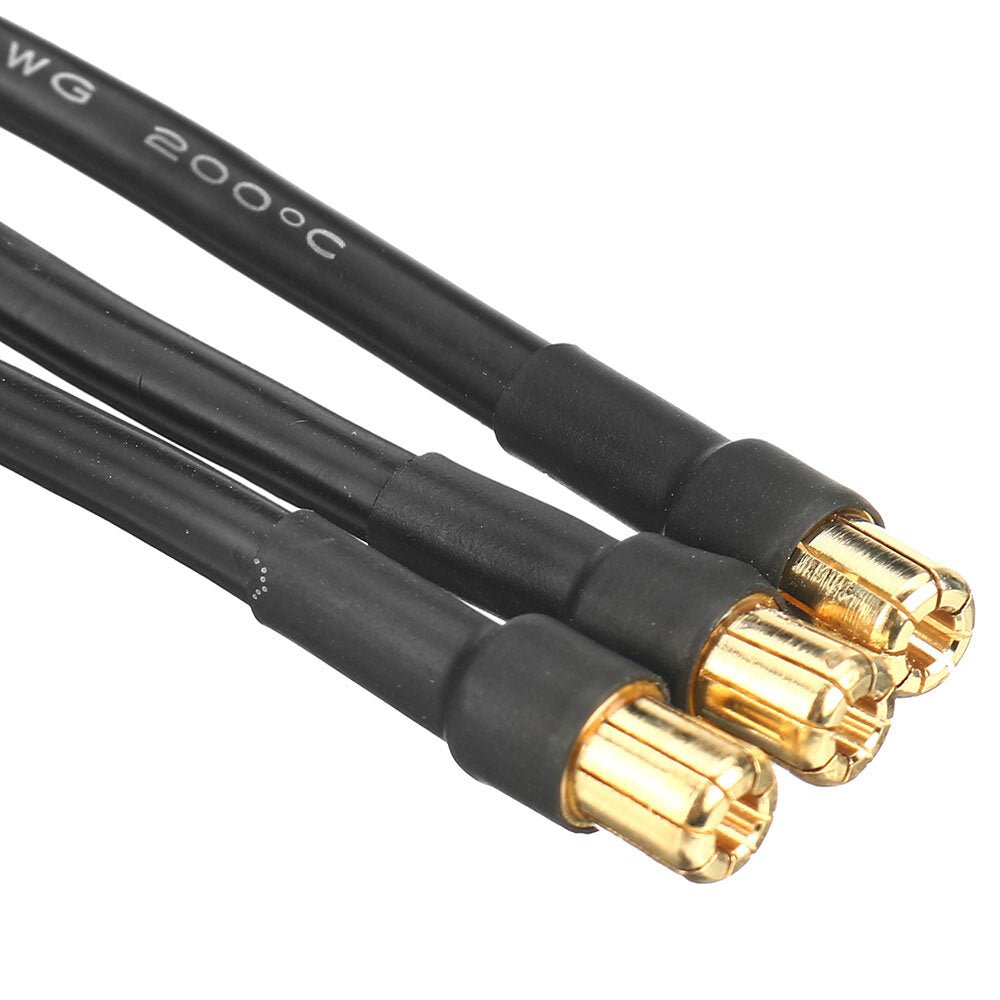

Connector:6.5mm Gold
Features:
- 4 pole 12 slot hi-torque motor design

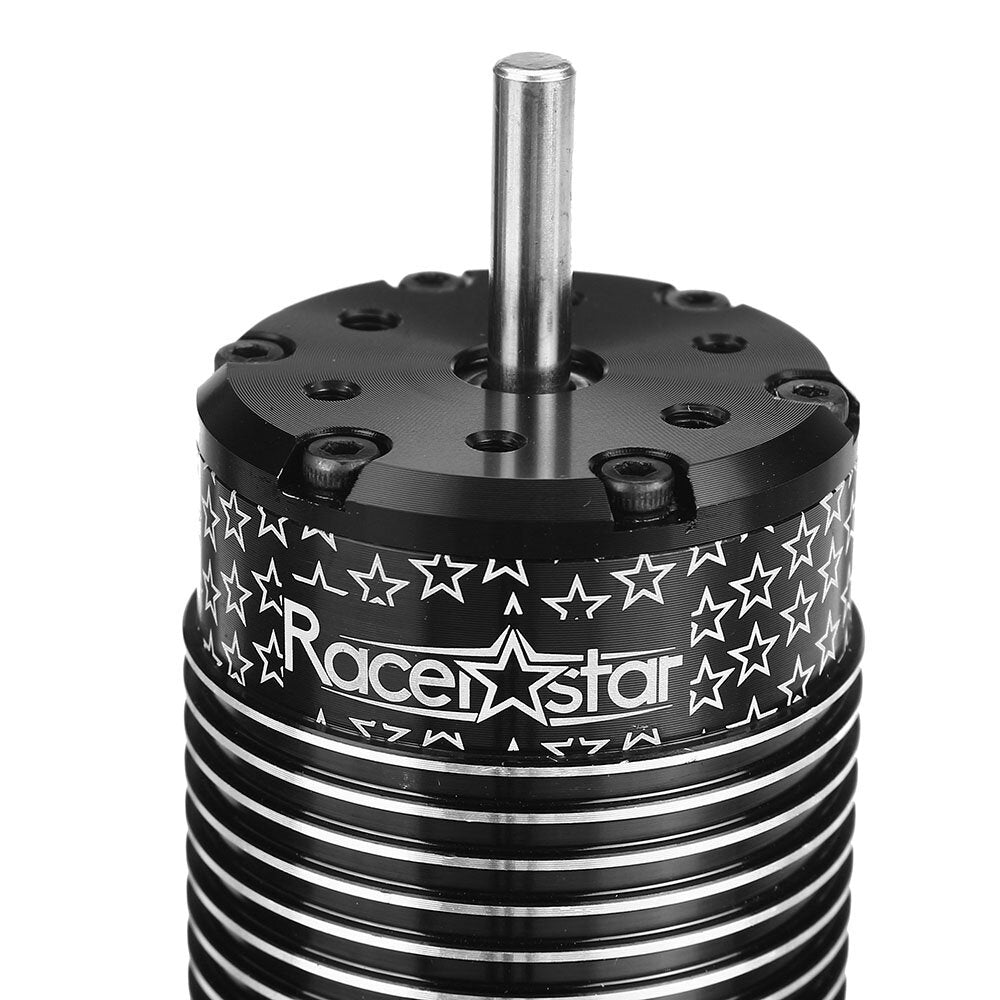

- CNC machined 6061 T6 billet aluminum heatsink can
- High purity copper windings maximizes efficiency
- High RPM ABEC 5 oversized bearings

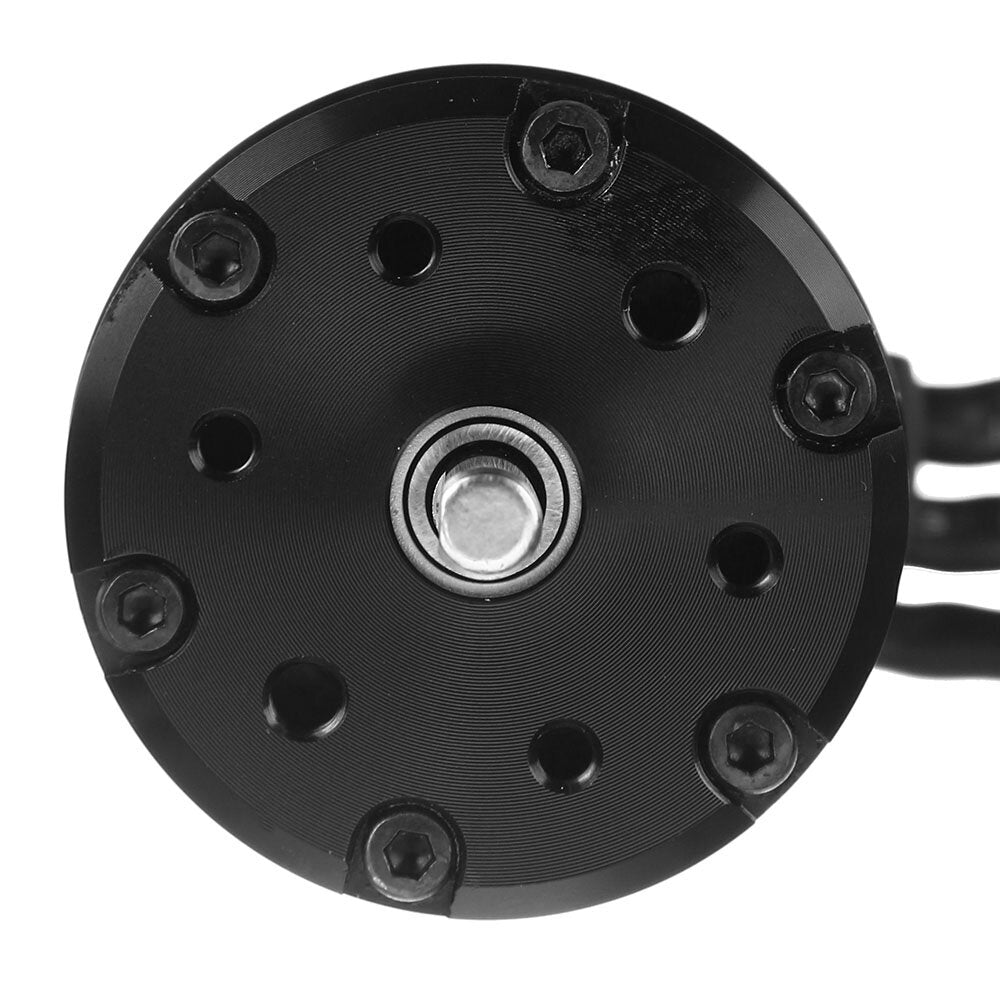

- Universal fit, fits all 1/8 brushless cars; multi-mounting system for M3 or M4 screws.
- Precision balanced rotor, smoothness for best reliability and maxium RPM
- Stator- super thin (0.2mm) laminations
- Removalbe/replaceable rotor
- Precision engineered for maxium energy coversion
Package Included:
1X Racerstar 4282 Motor
1X Manual
