ZOHD Alpha Strike 620mm Wingspan EPP Twin Bay FPV Flying Wing RC Airplane KIT/PNP

Manual: ZOHDAlphaStrikeUserManual.pdf

Description:

Far away from its “boxy-style” siblings, The Alpha Strike features new exciting lines, accompanied by an incredible performance. There is no doubt that long range FPV brings big rewards to the pilots, but that’s not for everyone. If you’re into high speed, proximity and acrobatics kind of action, this beast is going to be your new best friend. This short-mid range high-speed platform brings all the well known ZOHD trademarks (portability, high quality design and production) to a new thrilling level!

Specification:

Item Name: Alpha Strike

Material: High-Quality EPP

Wingspan: 620mm (24.41”)

Length: 650mm (25.59’’)

Motor: 2216-2200kv

ESC: 40A w/5v 3A BEC

Servos: 4.3g *2PCS

Propeller: 6*4.5

Wing size: 15.6 dm²

MAX Flying Speed: 185+km/h

Recommended MAX takeoff weight: 900g

Recommended Battery:

4S 2200-3200mAh 50C or higher. Consider CG.

Recommendations:

Max. takeoff weight: 900g

Battery: 4S 2200 - 3200mAh 50C or higher. Consider CG.

Min. Speed: 25-33km/h

Max. Speed (with default power combo): 185+km/h

Features:

1. Innovative designed Sharp Airfoil and aerodynamic airframe.

2. ZOHD MKIII blended wing body configuration

3. Improved air rolling design to protect your gear

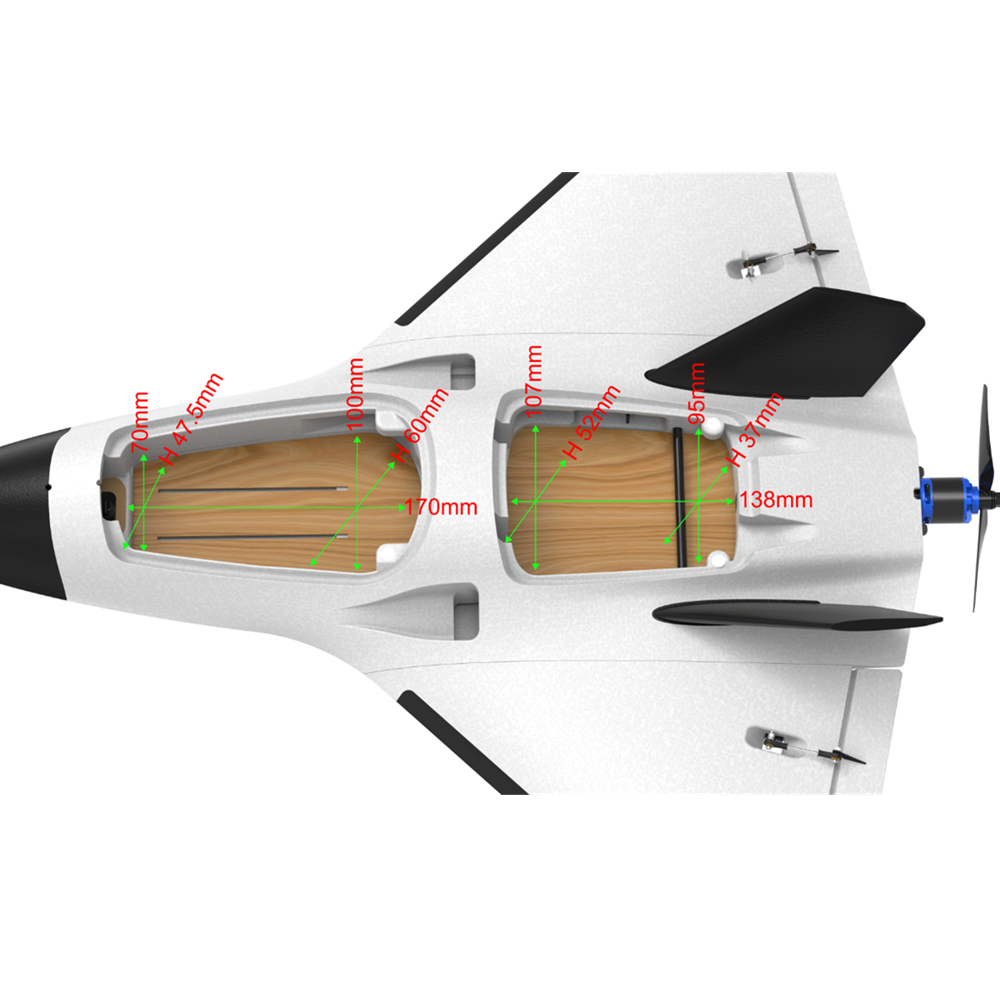

4. Innovative Twin Bay Design: Limitless options for setup

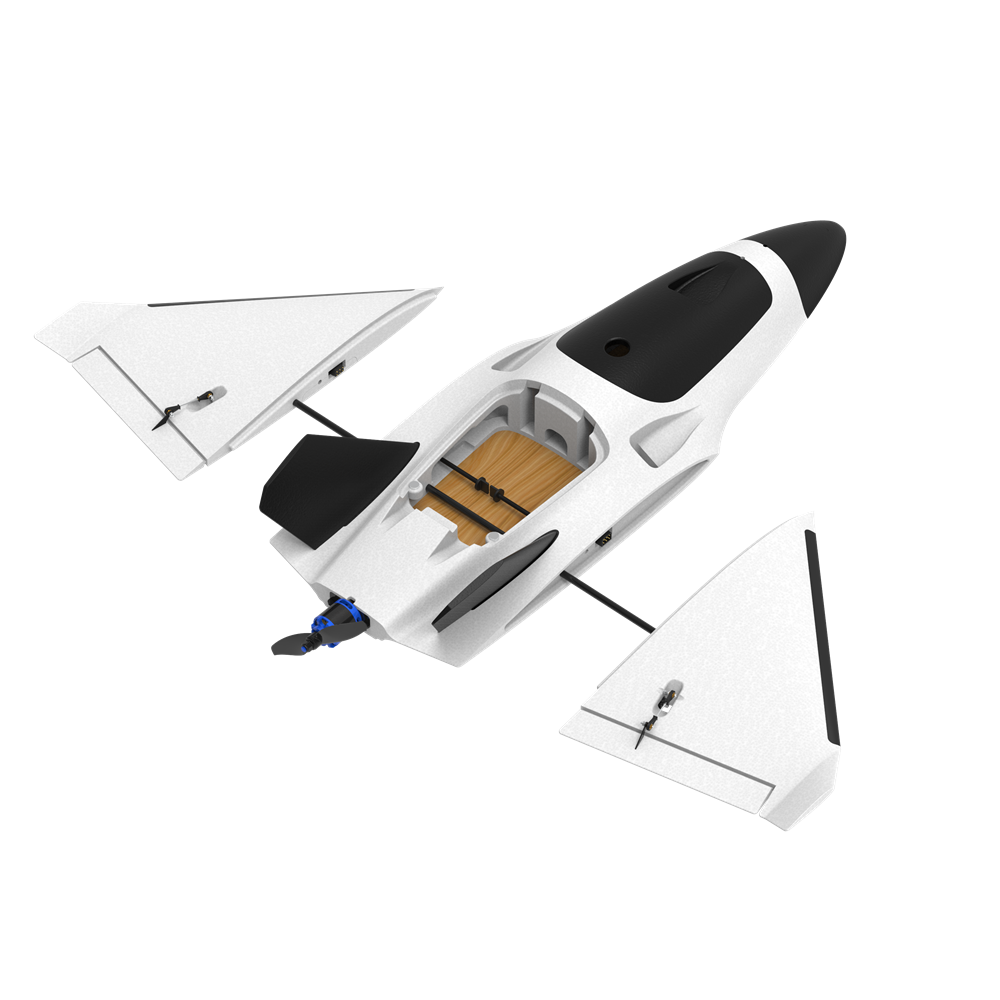

5. Detachable wing and tail fins, portable and easy to pack

6. EPP molded airframe, built-in carbon fiber spar for enhancement

7. Specially-designed servo arm “bunker” structure will protect your servo arm from impacts and minimize drag

8. Compatible with most of the racing quad power systems and FPV gear

9. Tefl0n skin protection to avoid scratches when landing

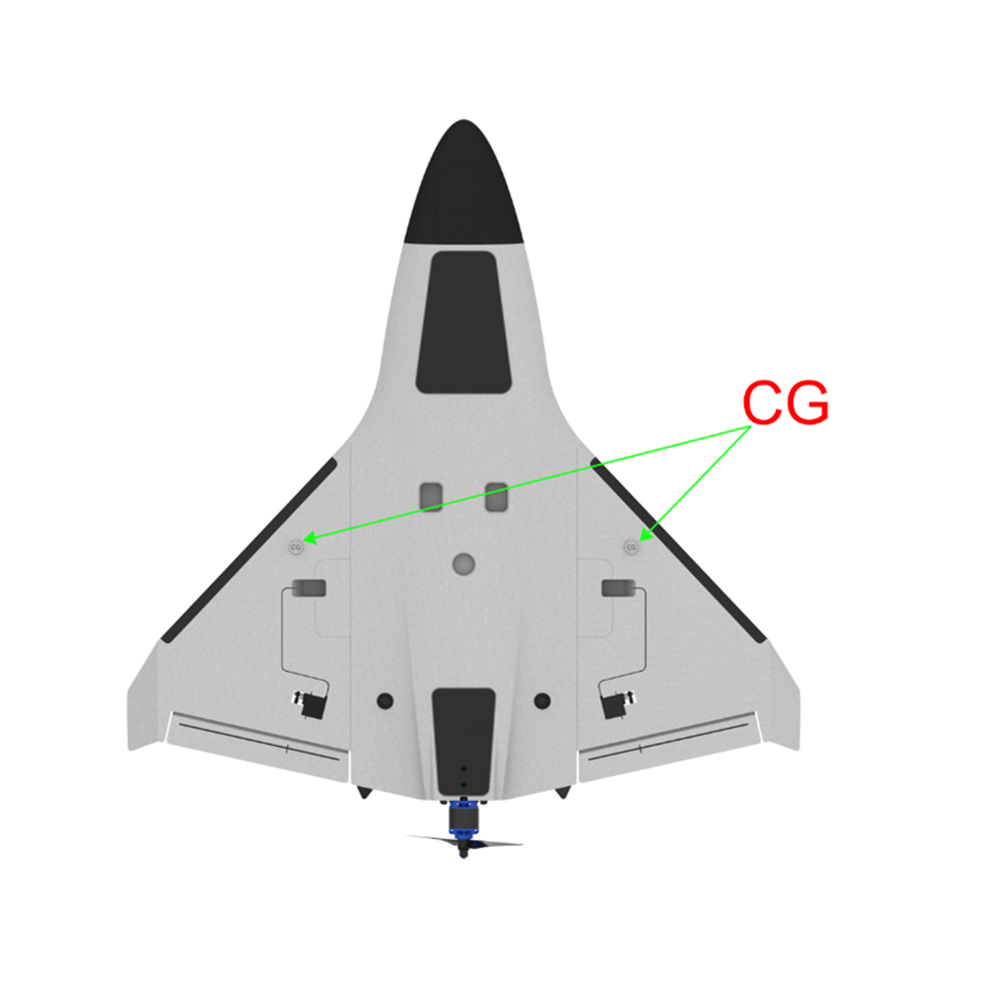

10. Molded marks for “CG” under the wing

11. Molded hand grip slots for a worry-free hand launch

12. Super stable flying performance

13. Looks AMAZING in the sky!

PNP Includes:

ZOHD Alpha Strike Flying Wing PNP with pre-installed motor, esc, servos, propeller, hardware.

PNP empty weight: 441g

PNP package size: 545*220*145mm

PNP package weight: 805g

KIT Includes:

ZOHD Alpha Strike Flying Wing KIT with hardware (no electronics).

KIT empty weight: 302g

KIT package size: 545*220*145mm

KIT package weight: 666g
